A perforated cable tray is a type of cable management system designed to support and organize electrical cables, wires, and sometimes even pipes in commercial, industrial, and data center environments. It features holes or perforations along its surface, providing several advantages over solid-bottom cable trays.
Key Features of Perforated Cable Tray:
Ventilation & Heat Dissipation – The perforations allow for better airflow, helping to cool cables and prevent overheating.
Lightweight & Cost-Effective – Less material is used compared to solid trays, making them lighter and often more economical.
Easy Installation & Accessibility – The open design simplifies cable routing, additions, or modifications.
Drainage – Allows liquids (like condensation) to pass through, reducing the risk of water accumulation.
EMI Shielding (if grounded) – Can provide some electromagnetic interference protection when properly bonded.
Common Applications:
Data Centers – For organizing network and power cables.
Industrial Facilities – Managing control wiring and power distribution.
Telecommunications – Supporting fiber optic and copper cables.
Commercial Buildings – Electrical and low-voltage cable management.

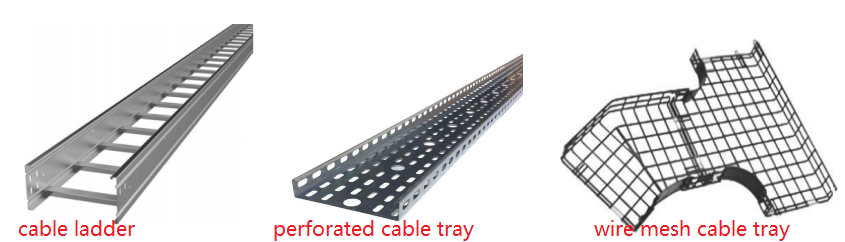

Types of Perforated Cable Trays:
Ladder-Type Perforated Tray – Combines ladder rungs with a perforated base for added strength.
Solid-Bottom Perforated Tray – Has a fully perforated base for better cable protection.
Wire Mesh Tray – More open than standard perforated trays, offering maximum airflow.
Materials:
Galvanized Steel – Resistant to corrosion, ideal for industrial use.
Stainless Steel – For harsh environments (chemical plants, marine applications).
Aluminum – Lightweight and corrosion-resistant, common in data centers.
Standards & Compliance:
NEMA VE-1 (Cable Tray Standards)
IEEE 1185 (Guide for Cable Trays in Power Plants)
UL 2024 (Safety for Cable Trays)
Installation Tips:
Use proper supports (spacing depends on load and tray type).
Ensure proper grounding for EMI-sensitive applications.
Avoid overfilling (follow NEC/CEC fill capacity guidelines).
