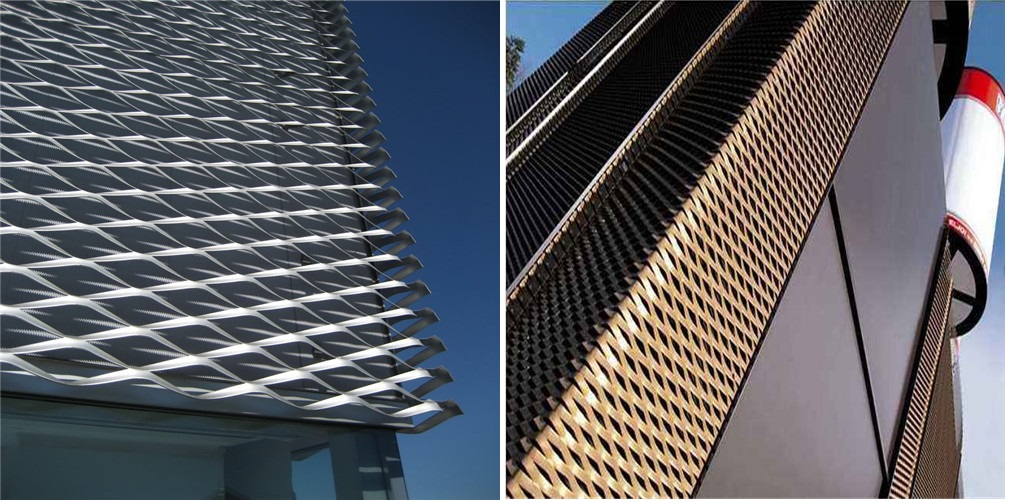

Aluminum Mesh Curtain Wall: A Modern Architectural Solution
Aluminum mesh curtain walls are lightweight, durable, and visually striking façade systems used in modern architecture. They combine aesthetic appeal with functional benefits like sun shading, ventilation, and privacy control. Below is a detailed breakdown of their features, applications, and technical specifications.
1. Key Features & Benefits
✔ Lightweight & Durable – Aluminum is corrosion-resistant and easy to install.
✔ Sun Shading & Energy Efficiency – Reduces solar heat gain while allowing airflow.
✔ Customizable Designs – Available in various weaves, patterns, and colors.
✔ Low Maintenance – Resists rust, UV rays, and weathering.
✔ Versatile Applications – Suitable for high-rise buildings, stadiums, and decorative screens.
2. Types of Aluminum Mesh for Curtain Walls
| Type | Description | Best For |
|---|---|---|
| Woven Mesh | Interlocked aluminum wires for flexibility and airflow. | Decorative façades, sunscreens. |
| Expanded Metal Mesh | Stamped and stretched from a single sheet, rigid and strong. | Security screens, industrial use. |
| Perforated Mesh | Laser-cut patterns for artistic designs. | Branding, artistic façades. |
| Chain Link Mesh | Lightweight, cost-effective, and easy to install. | Temporary enclosures, green walls. |
3. Technical Specifications
| Parameter | Options | Design Considerations |
|---|---|---|
| Material | Aluminum alloy (e.g., 3003, 5052, 6061) | 6061 for high strength, 3003 for formability. |
| Mesh Size | 5x5mm to 100x100mm (customizable) | Smaller mesh = more shade & privacy. |
| Wire Diameter | 1mm–6mm | Thicker wires = higher durability. |
| Surface Finish | Anodized, powder-coated, PVDF | Anodized for corrosion resistance. |
| Panel Size | Custom (typical: 1200mm x 2400mm) | Modular panels for easy installation. |
4. Applications
Architectural Uses
- Building Façades – Dynamic shading and modern aesthetics (e.g., Herzog & de Meuron projects).
- Balcony Screens – Privacy without blocking light or airflow.
- Atriums & Canopies – Light-filtering ceilings and sunshades.
Functional Uses
- Solar Shading – Reduces cooling costs by blocking direct sunlight.
- Safety Barriers – Fall protection for high-rise buildings.
- Acoustic Panels – Perforated mesh with sound-absorbing backing.
5. Installation Methods
- Frame-Mounted – Fixed to aluminum/steel frames (most common).
- Tensioned Cable System – For flexible, lightweight installations.
- Cassette Panels – Pre-assembled units for quick façade assembly.
6. Design Tips
- Backlighting – LED lights behind mesh create stunning night-time effects.
- Color Matching – Powder-coating in RAL colors for branding or blending with surroundings.
- Wind Load Testing – Ensure mesh panels meet local building codes for high-wind areas.
Ideal for: Architects, contractors, and developers seeking aesthetic + functional façade solutions. Request samples to test light diffusion and durability!
