What is a Hammer Mill Perforated Screen?

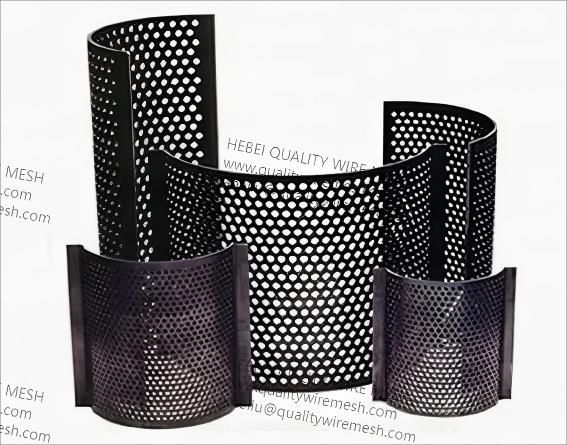

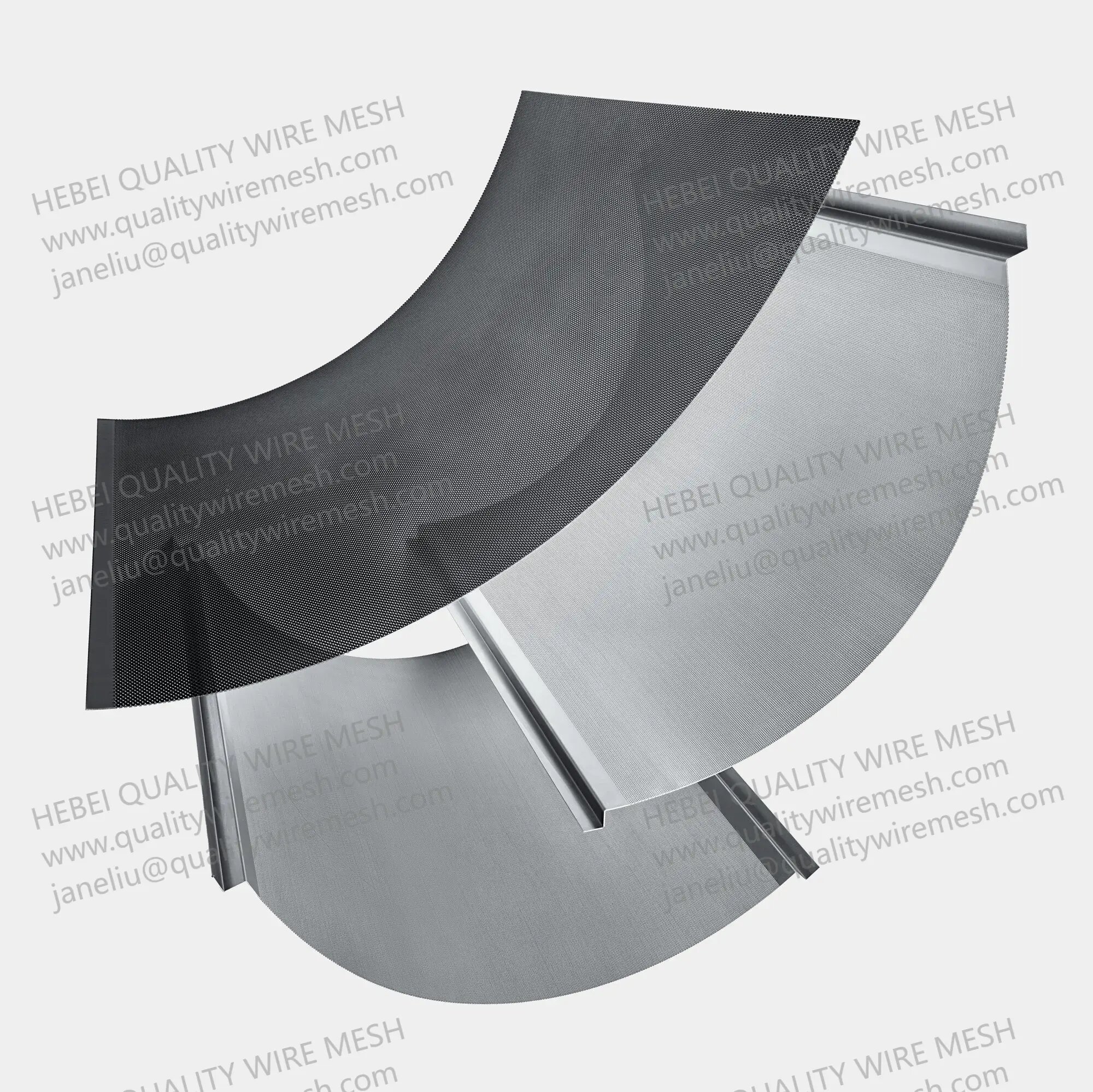

The perforated screen (also called a grinding plate, screen cage, sieve, or simply screen) is a critical, consumable component housed within the grinding chamber of a hammer mill. It’s a curved or flat metal plate, typically made from hardened steel, stainless steel, or specialized alloys, featuring numerous precisely sized and shaped holes (perforations) drilled or punched through it.

Core Function: Particle Size Control & Discharge

The Final Barrier: It forms the lower boundary of the grinding chamber where the hammers rotate at high speed.

Size Classification: This is its primary function. Material beaten by the hammers is forced towards the screen. Particles smaller than the screen hole diameter pass through and exit the mill as the finished product.

Particle Retention: Particles larger than the screen holes are retained inside the grinding chamber. They are lifted by the airflow and hammer momentum, then subjected to further impact and grinding by the hammers until they are reduced enough to pass through the perforations.

Discharge Path: The screen holes provide the only exit path for the ground product from the grinding chamber.

Key Characteristics & Design Elements

Hole Size (Aperture):

Directly determines the maximum particle size of the finished product. Smaller holes = finer grind.

Ranges from <1mm (very fine) to >10mm (coarse) depending on the application.

Hole Shape:

Round Holes: Most common. Produce a relatively uniform particle size distribution.

Slotted Holes (Rectangular/Square): Produce a more elongated or flaky particle. Offer higher open area for the same nominal size, potentially increasing throughput but with less precise size control. Common in fiber/forage grinding.

Diamond/Tear Drop Holes: Used for specific materials to reduce plugging.

Open Area (%):

The total area of the holes as a percentage of the total screen surface area.

Higher open area generally allows for higher throughput and reduced power consumption (less resistance to airflow/product discharge).

Balancing act: Larger holes or more holes increase open area but reduce structural strength.

Material & Thickness:

Material: Hardened steel (most common, cost-effective), Stainless Steel (corrosion resistance, food/pharma), Abrasion-Resistant Alloys (for highly abrasive materials), Chrome Carbide Overlay (extreme abrasion resistance).

Thickness: Thicker screens are more durable but reduce open area. Thinner screens have higher open area but wear faster. Choice depends on material abrasiveness and required longevity.

Construction:

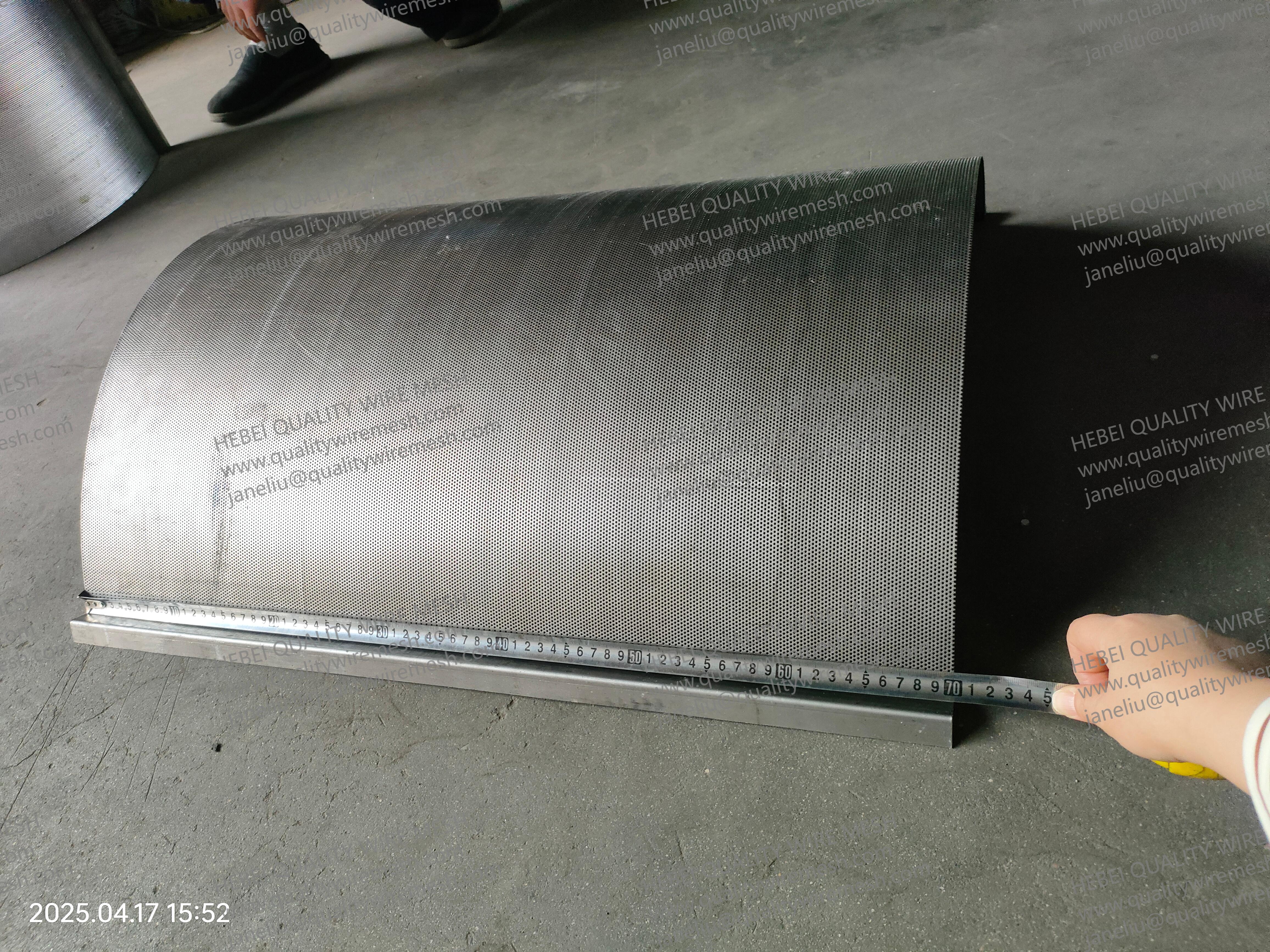

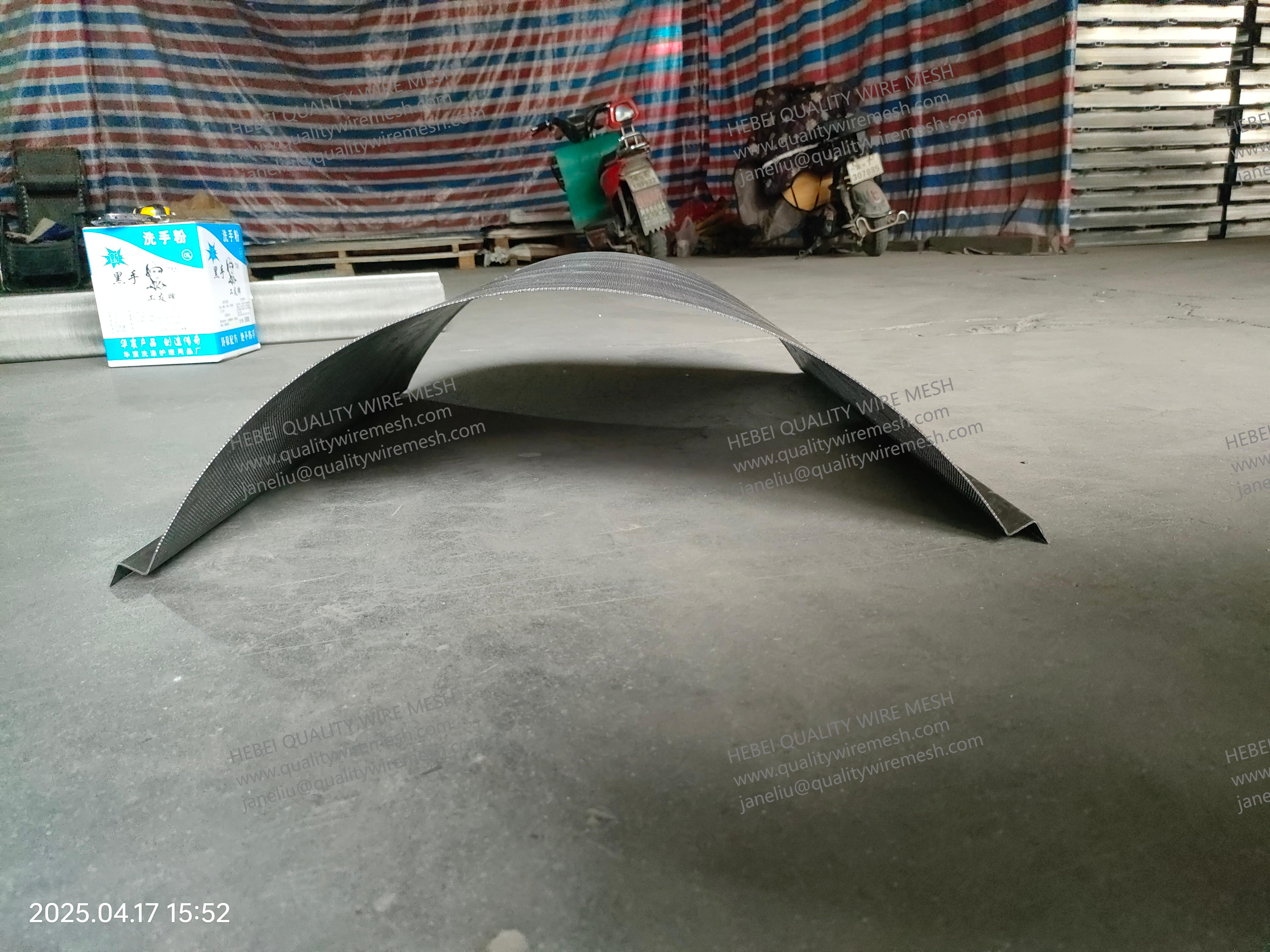

Single Plate: Curved or flat plate.

Segmented Screens: Made of multiple smaller sections (arcs or panels) for easier handling and replacement, especially in large mills.

Reinforcement: Screens may have ribs or thicker edges for structural support.

Why is the Screen So Important?

Dictates Final Product Size: The single most significant factor controlling particle size output.

Impacts Throughput: Open area and hole size directly affect how much material can be processed per hour.

Affects Power Consumption: Higher resistance (lower open area, finer grind) requires more motor power.

Influences Grinding Efficiency: Retains material until properly sized, ensuring consistent grind.

Major Wear Part: Constantly bombarded by material and hammers, making it a primary consumable requiring regular replacement. Wear reduces hole size/sharpness and open area, affecting performance.

Affects Heat Generation: Friction between material and screen can generate heat, potentially damaging heat-sensitive products.

Selection Considerations

Choosing the right screen is crucial for optimal hammer mill performance:

Desired Finished Particle Size: Select hole size accordingly.

Material Characteristics:

Abrasiveness: Determines required material/thickness/wear resistance.

Moisture/Stickiness: Influences hole shape/size to avoid plugging (slotted holes or larger round holes might be better).

Fibrousness: Slotted holes often preferred for forage/fiber.

Required Throughput: Higher throughput often needs larger holes or higher open area.

Mill Specifications: Compatibility with the specific hammer mill model.

Cost vs. Lifetime: Balancing initial cost against expected wear life.

In Summary: The hammer mill perforated screen is the essential “gatekeeper” of the grinding process. By defining the exit size, it directly controls the final product particle size, while significantly impacting throughput, efficiency, power usage, and operating costs. Its selection and maintenance are critical for achieving the desired grinding results and economical operation.
